Overview
This article will show you how to create a SIP trunk to/from Spoke Phone.
It contains the following sections:
Creating a SIP trunk
- Login to your Spoke Phone account portal.

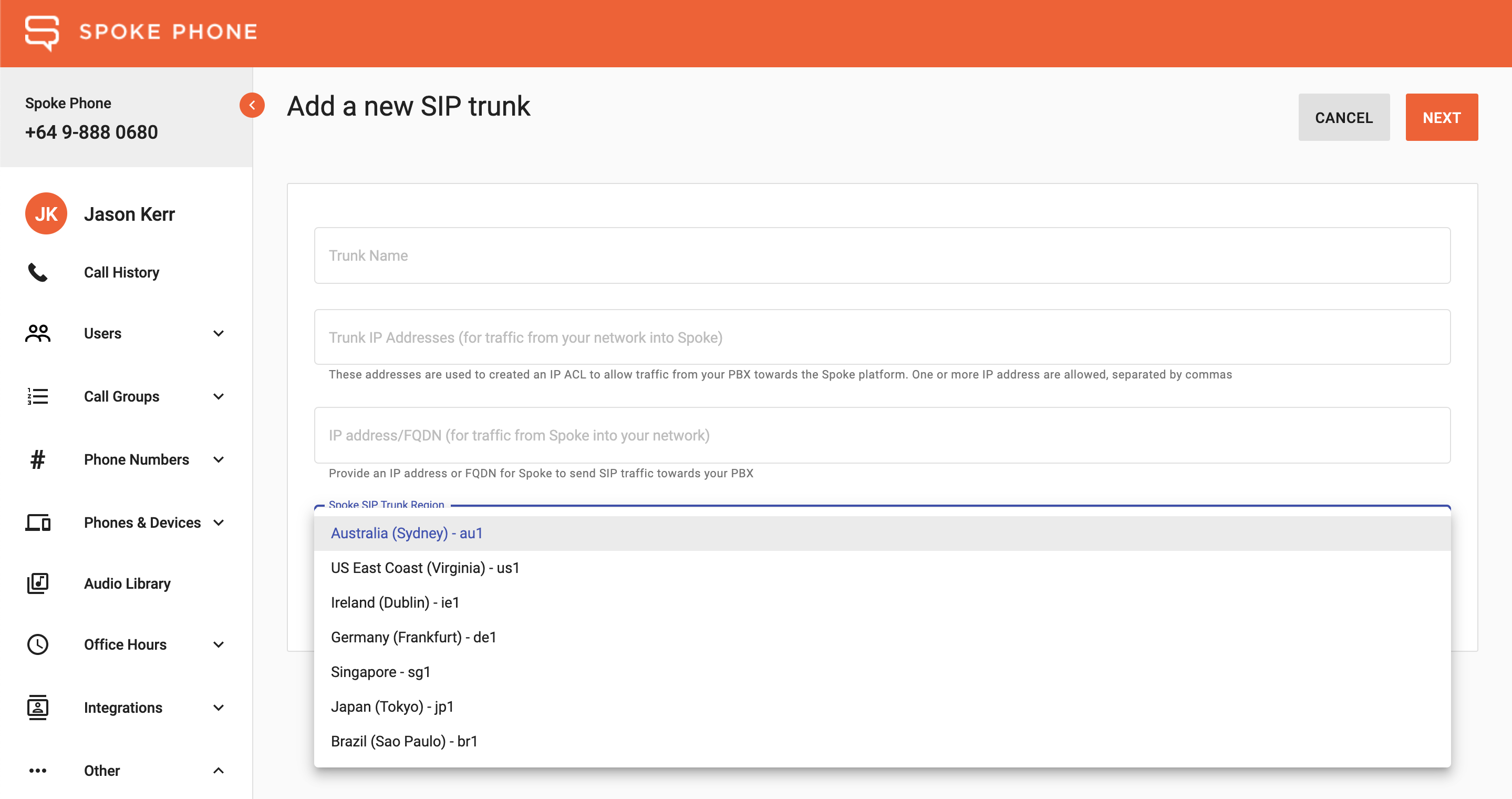

- Go to other > SIP trunks > add SIP trunk.
- Trunk name: It's a good idea to name the trunk for the PBX, contact center, or infrastructure you are connecting to. E.g. "Cisco Melbourne office".
- Spoke Phone SIP trunk region: Select the region closes (geographically) to your infrastructure
- Click next, and you are done.
The SIP Trunk is created and will display the authentication and IP addresses that you need to configure your PBX/contact center.
Copy down the authentication, IP addresses, and other information provided as you will need this.
Using your SIP domain
The SIP domain we provide you will follow this pattern:
companyName-region-spoke.sip.region.twilio.com
Appending the destination to the SIP domain
In order to send the call to the correct user, device, or team, you will append the extension number to the SIP domain to create your SIP Invite.
Spoke Phone issues extension numbers to users, devices, and call/hunt groups. To see and edit your list of extensions:
- Log in to your Spoke Phone account portal.
- Go to other > extensions.
Once you have the extension number of the user, device, or team, simply append the extension number to the SIP Domain like this:
sip:extension@sipdomain
so if the extension number is 200, then:
sip:200@sipdomain
So if the SIP domain we provide you is:
acmeinc-au-spoke.sip.au1.twilio.com
And the Spoke Phone extension you want to send calls to is 200, then the SIP address to forward calls to will look like this:
sip:200@acmeinc-au-spoke.sip.au1.twilio.com
